Detailed Info
- Footprint
- Machine depth (mm)2400
- Machine height (mm)850
- Machine length (mm)24000
- Machine weight (kg)200
- More Information

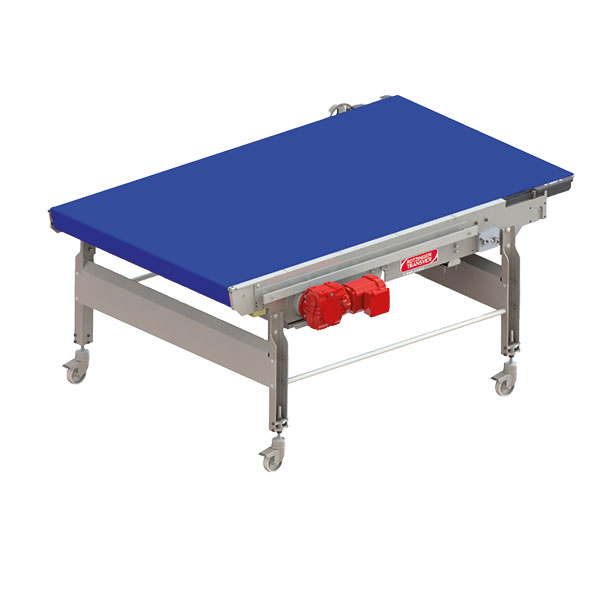

- Other infoThe Straight Conveyor features a modular design and can be configured according to specific application requirements, including friction characteristics and cleaning concepts. The conveyor is available in different hygienic executions, ranging from dry-cleaning designs with the highest hygienic standards to wet-cleaning variants such as wipedown (W1), showerdown (W2), and full washdown (W3, up to IP69K). Its open and easily accessible construction, combined with standardized stainless steel components, supports effective cleaning and reliable operation in hygienically sensitive production environments. This makes the conveyor suitable for a wide range of applications in both food and non-food industries. Optional features such as ceiling suspension or driven side guides can be integrated as required. Precisely coordinated components ensure service-friendly operation and long-term reliability. The use of small cylindrical end rollers with diameters of 10 mm or 14 mm, as well as knife edges with a radius of 3 mm, enables gentle and accurate transport of small and delicate products. Technical Data: - Belt widths 200mm ¿ 2¿400mm - Length: from 800mm ¿ 24¿000mm - Height: 850 mm standard and fully customizable - Weight 200 kg depending on dimensions - Belt speed: up to 150m/min - End roller: Ø 10, 14 mm - Other dimensions on request. Cleaning Concept Available in multiple hygienic design variants depending on cleaning requirements: ¿ Dry cleaning: Highest hygienic standard design ¿ Wet cleaning variants: W1 ¿ Wipedown W2 ¿ Showerdown W3 ¿ Washdown (IP69K)
- Value proposition
- Value propositionFlexibility
