Detailed Info
- Footprint
- Machine depth (mm)1
- Machine height (mm)1
- Machine length (mm)1
- Machine weight (kg)1
- More Information

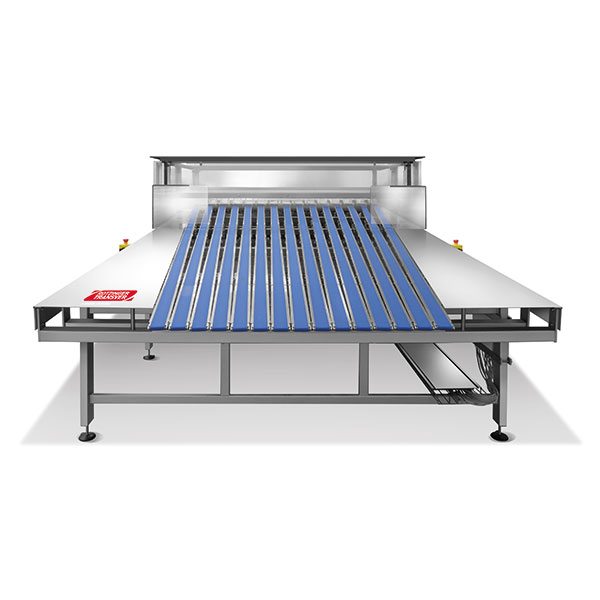

- Other infoThe Cassette Conveyor consists of multiple narrow cassette belt conveyors arranged side by side to enable controlled product distribution and handling across several lanes. The modular system design allows flexible configuration for a wide range of conveying tasks such as spreading product rows, turning transversely arriving products, sorting individual items, synchronizing product flows, and depositing products accurately within downstream processes. Each cassette conveyor can be equipped with functional options such as junction or pull-nose execution to further optimize product transfer and handling. Small cylindrical end rollers with diameters of 10 mm or 14 mm, as well as optional knife edge executions with a radius of 3 mm, enable gentle and precise transport of small and delicate products. This makes the system suitable for handling small or fragile products. Depending on application requirements, the system can be operated with a central drive or individual drives per cassette conveyor. Belt tensioning can be adjusted via the deflection roller without changing belt length, supporting efficient maintenance and stable conveying performance. The cassette conveyor system is suitable for use in both food and non-food industries and can be configured to match specific layout and product handling requirements. Technical Data: - Height: 850 mm standard and fully customizable - Weight 200 kg depending on dimensions - Belt widths 50 mm ¿ 270 mm single conveyor - Speed of drive chain up to 120m/min - End roller Ø 10, 14 mm Wet cleaning variants: o W1 ¿ Wipedown o W2 ¿ Showerdown o W3 ¿ Washdown (up to IP69K)
- Value proposition
- Value propositionScalability
